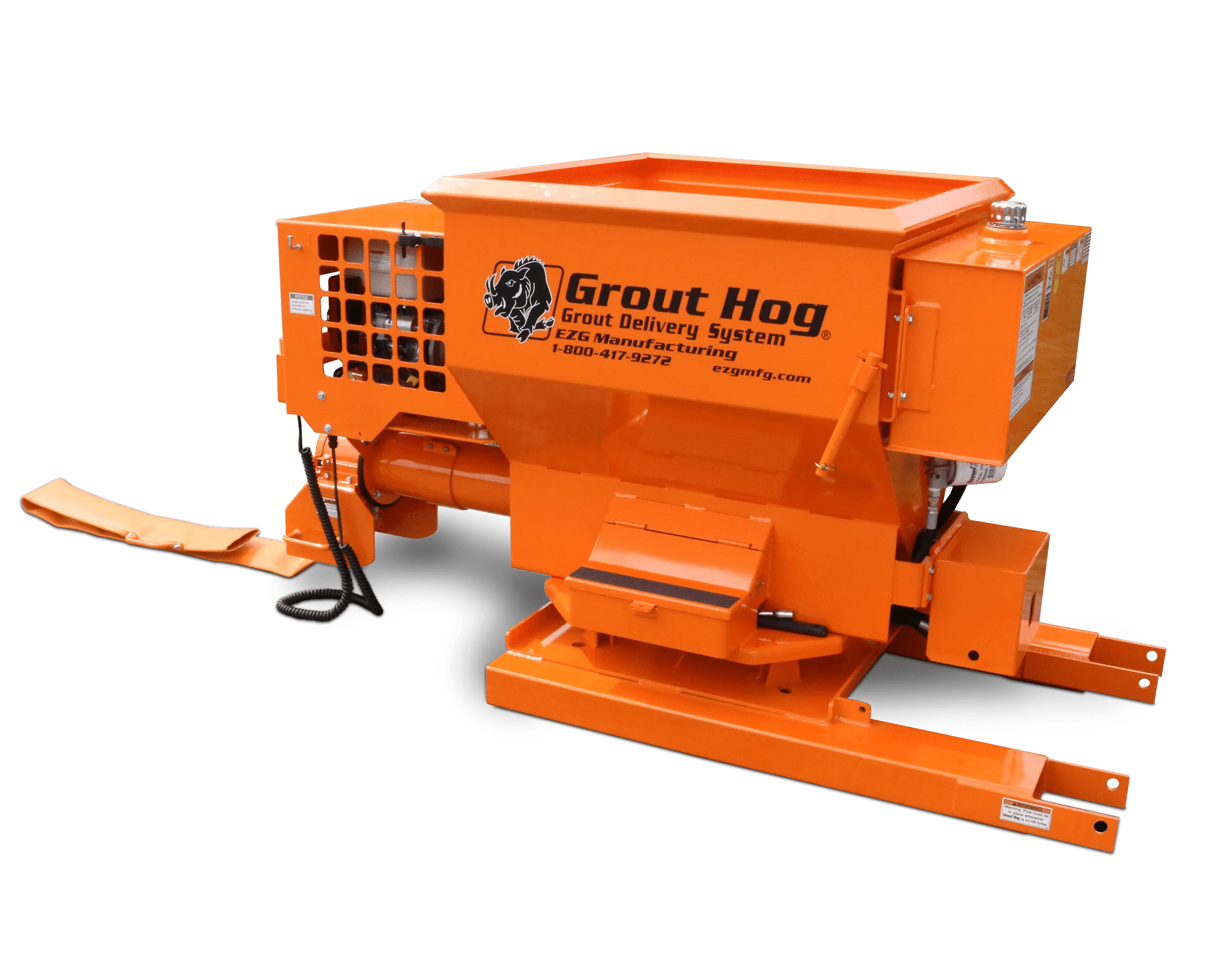

#1 Grout & Concrete Pump: The Grout Hog®
The Grout Hog® is a gravity-fed grout delivery system engineered to eliminate manual bucket hauling and streamline masonry block fill. Available in both Horizontal and Uphill models, it’s designed for efficient material placement across a variety of jobsite conditions. Built for reliability and refined through years of field testing, the Grout Hog allows two-person crews to complete safe, efficient masonry pours with less labor and less strain.
For faster placement, reduced labor, and more efficient masonry work—all with one rugged system—choose the Grout Hog®.
Key Benefits
Unloads ¾ cubic yard in approximately 2½ minutes, accelerating grout placement
3-minute setup and 15-minute clean-up, maximizing daily production time

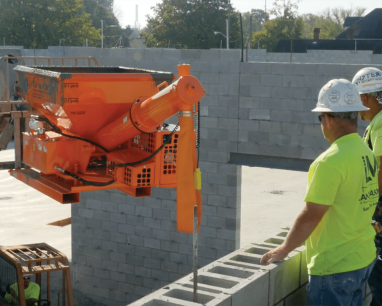

Operated by just two people, with the weight supported by the forklift
Available in both standard (horizontal) and uphill models
Swivel-base design with 17 ft. reach reduces forklift repositioning
Applications
The Grout Hog® is engineered for efficient placement of masonry materials, including
CONCRETE
GROUT
MORTAR
Grout Hog Models
COMPARISON
Compare both Grout Hog® models to find the configuration that best fits your job site needs. Each model delivers the same durable, gravity-fed design and high-capacity performance, with differences in material delivery orientation for horizontal or uphill applications.
GH75
GPH75
GPHC75
UGH75
UGPH75
UGPHC75
91″ x 41″ x 48″ (2311 x 1041 x 1219 mm)
91″ x 41″ x 66″ (2311 x 1041 x 1675 mm)
`133″ x 47″ x 48″ (2870 x 1194 x 1219 mm)
`133″ x 47″ x 48″ (2870 x 1194 x 1219 mm)
`133″ x 47″ x 63″ (2870 x 1194 x 1219 mm)
91″ x 41″ x 48″ (2311 x 1041 x 1219 mm)
Dimensions
Auger Type
Horizontal
Horizontal
Horizontal
Uphill
Uphill
Uphill
Aggregate Size
3/4" (19 mm)
3/4" (19 mm)
3/4" (19 mm)
1/2" (13 mm)
1/2" (13 mm)
1/2" (13 mm)
Honda GX390
11.7 hp (8.7kw)
Honda GX390
11.7 hp (8.7kw)
Honda GX390
11.7 hp (8.7kw)
Honda GX390
11.7 hp (8.7kw)
Power Source
Auxiliary
Auxiliary
990 lbs.
(449 kg)
1429 lbs.
(648 kg)
1534 lbs.
(696 kg)
1055 lbs.
(478.5 kg)
1472 lbs.
(668 kg)
1565 lbs.
(709.8 kg)
Empty Weight
4010 lbs.
(1819 kg)
4436 lbs.
(2012 kg)
4525 lbs.
(2053 kg)
4055 lbs.
(1839 kg)
4475 lbs.
(2030 kg)
4565 lbs.
(2071 kg)
Gross Weight
GH75
91" x 41" x 48"
(2311 x 1041 x 1219 mm)
Dimensions
Auger Type
Horizontal
Aggregate Size
3/4" (19 mm)
Power Source
Auxiliary
990 lbs. (449 kg)
Empty Weight
Gross Weight
4010 lbs. (1819 kg)
91" x 41" x 48"
(2311 x 1041 x 1219 mm)
Dimensions
Auger Type
Horizontal
Aggregate Size
3/4" (19 mm)
Power Source
Honda GX390 11.7 hp (8.7kw)
1429 lbs. (648 kg)
Empty Weight
Gross Weight
4436 lbs. (2012 kg)
GPH75
GPHC75
Dimensions
Auger Type
Aggregate Size
Power Source
Empty Weight
Gross Weight
4525 lbs. (2053 kg)
91" x 41" x 66"
(2311 x 1041 x 1675 mm)
Horizontal
3/4" (19 mm)
Honda GX390 11.7 hp (8.7kw)
1534 lbs. (696 kg)
Dimensions
Auger Type
UGH75
Aggregate Size
Power Source
Empty Weight
Gross Weight
4055 lbs. (1839 kg)
`133" " x 47" x 48"
(2870 x 1194 x 1219 mm)
Uphill
1/2" (13 mm)
Auxiliary
1055 lbs. (478.5 kg)
Dimensions
Auger Type
UGPH75
Aggregate Size
Power Source
Empty Weight
Gross Weight
4475 lbs. (2030 kg)
`133" " x 47" x 48"
(2870 x 1194 x 1219 mm)
Uphill
1/2" (13 mm)
Honda GX390 11.7 (8.7kw)
1472 lbs. (668 kg)
Dimensions
Auger Type
UGPHC75
Aggregate Size
Power Source
Empty Weight
Gross Weight
4565 lbs. (2071 kg)
`133" " x 47" x 63"
(2870 x 1194 x 1219 mm)
Uphill
1/2" (13 mm)
Honda GX390 11.7 (8.7kw)
1565 lbs. (709.8 kg)
Grout Hog

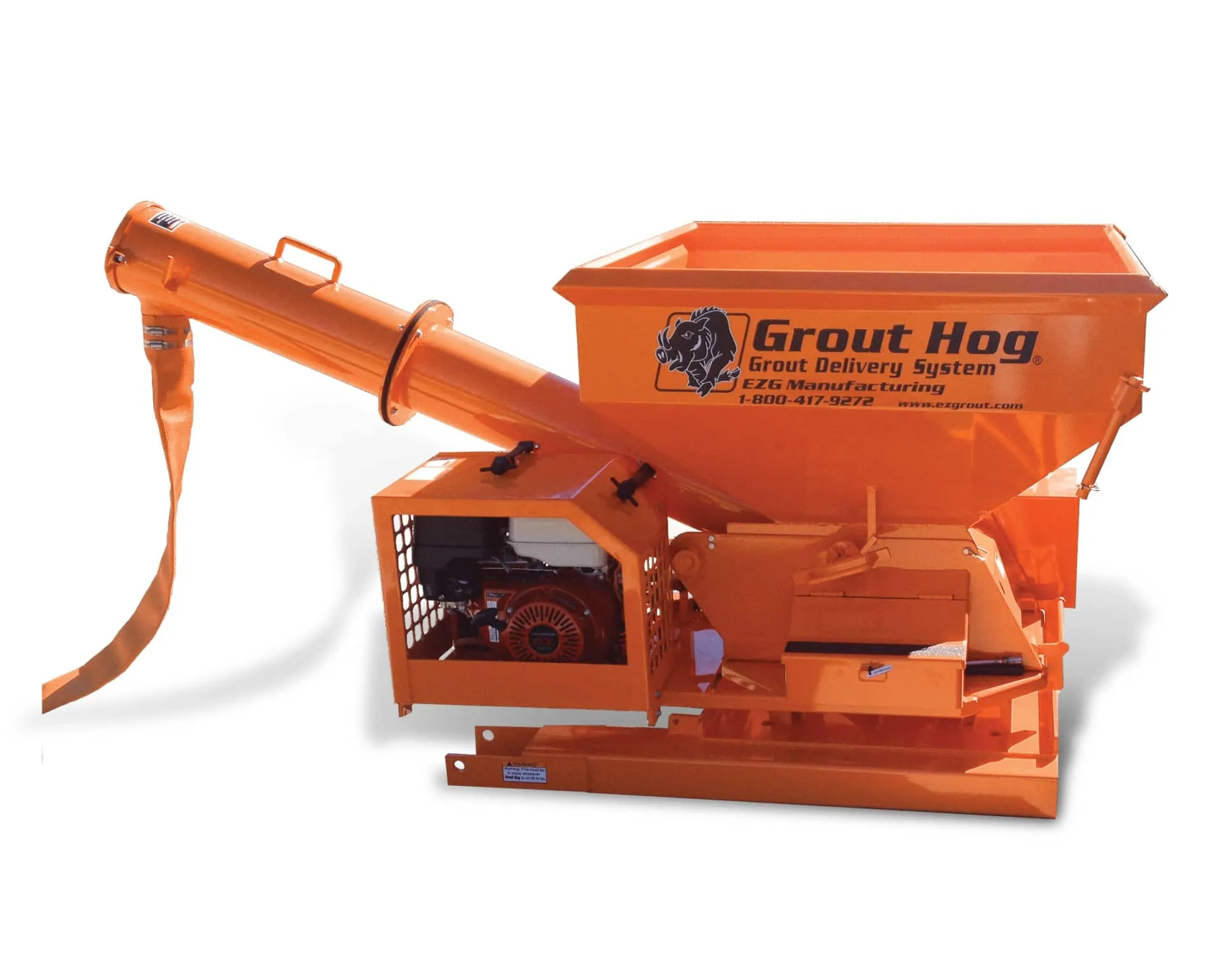

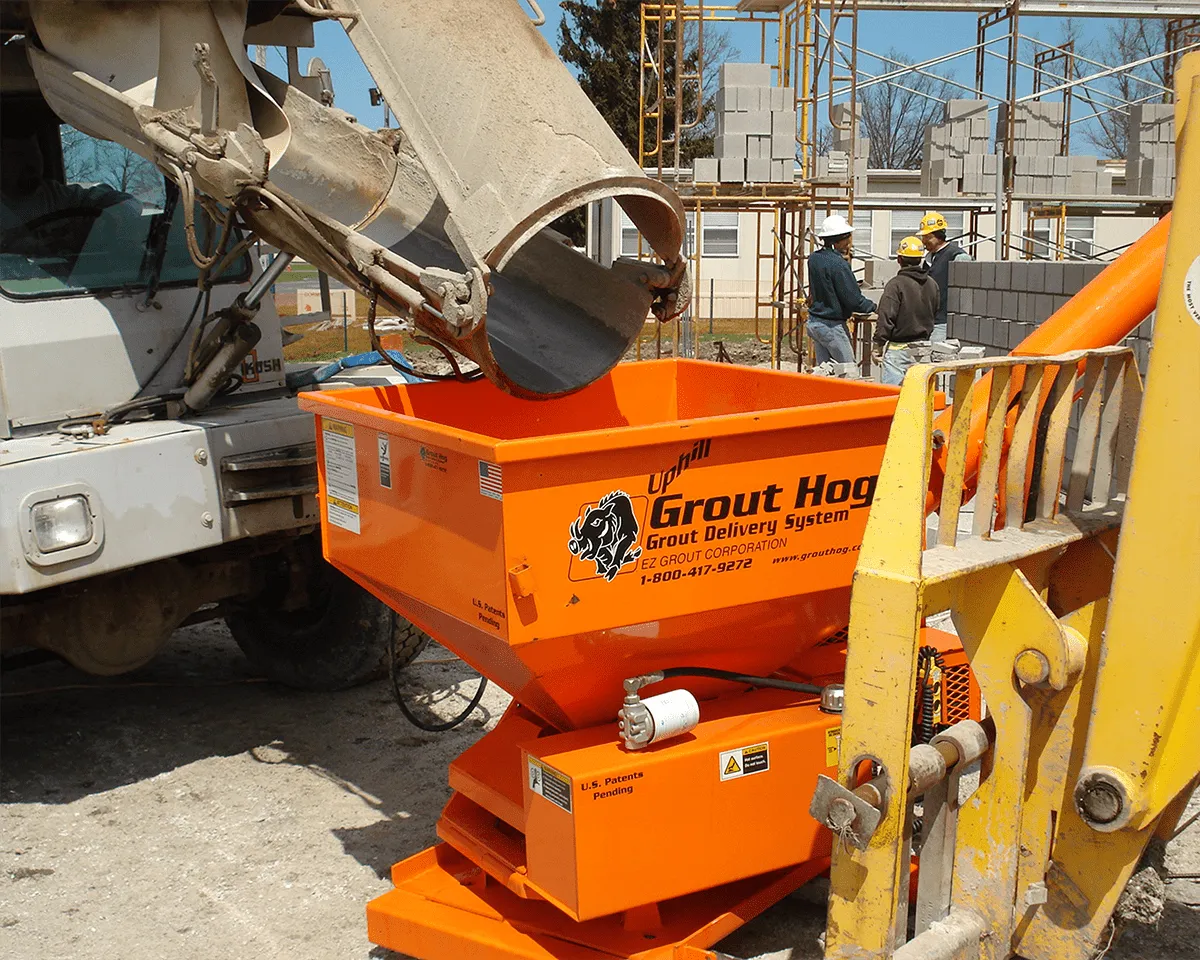

Uphill Grout Hog
High Torque
16+ GPM
Standard flow
Motor
FAQs
How many people are required to operate the Grout Hog®?
Only two people are needed for safe and efficient operation—one to guide the hose and one to operate the forklift—eliminating manual bucket hauling and reducing crew fatigue.
What’s the difference between the Horizontal and Uphill models?
The Horizontal model is ideal for standard block fill applications, while the Uphill model is built for jobs requiring elevation changes or uphill material delivery. Both models feature a 17-foot swivel-base reach for reduced forklift repositioning and faster pours.
How does the swivel-base design improve productivity?
The 17-foot swivel radius reduces the number of times the forklift must be repositioned, allowing for more continuous pours and faster overall block fill.
Why the Grout Hog?
“The Grout Hog is uniquely designed and an efficient means of installing grout, regardless of whether "Low Lift" or "High Lift" methods are being utilized. It is a time and money saver. In a very short period of time, the Grout Hog pays for its initial costs with the efficient delivery of grout into the wall. A great product!"
- Geno Virgili, Mardo Masonry
